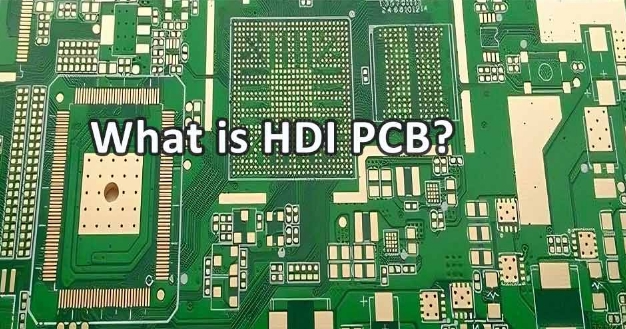

HDI PCB stands for high-density interconnect printed circuit board, which is a type of PCB that uses advanced technologies and methods to achieve higher circuit density, smaller size, and better performance than conventional PCBs. HDI PCBs are widely used in complex and compact electronic devices that require high-speed, high-frequency, and low-power consumption.
HDI PCB is a circuit board that has a relatively high circuit distribution density using micro-blind holes and buried holes1. Micro-blind holes are vias that connect an outer layer to one or more inner layers, but do not go through the entire board. Buried holes are vias that connect two or more inner layers, but do not reach the outer layers. These vias are usually very small, with diameters ranging from 0.05 mm to 0.15 mm2.
HDI PCB also uses fine traces and pads, which are the conductive paths and contact points on the board. The trace width and space, as well as the pad diameter, are typically less than 0.1 mm2. These features allow HDI PCB to accommodate more components and connections in a smaller area, resulting in higher functionality and reliability.
HDI PCB is usually manufactured by sequential lamination, which is a process of stacking and bonding multiple layers of PCBs together. Each layer is drilled, plated, and etched separately, and then aligned and laminated with a thin layer of resin. This process can create various types of vias, such as stacked vias, staggered vias, and skip vias, which can increase the interconnection density and routing flexibility2.
HDI PCB is usually found in complex electronic devices that demand excellent performance while conserving space. Some of the common applications of HDI PCB are:
1.Mobile/cellular phones: HDI PCB enables the integration of multiple functions, such as camera, GPS, Bluetooth, Wi-Fi, and 4G/5G network, in a single device. HDI PCB also improves the signal quality and reduces the power consumption and electromagnetic interference3.
2.Touch-screen devices: HDI PCB allows the use of capacitive touch sensors, which are more responsive and accurate than resistive touch sensors. HDI PCB also enables the incorporation of haptic feedback, which is a tactile sensation that simulates the physical interaction with the device3.
3.Laptop computers: HDI PCB reduces the size and weight of the laptop, while increasing the computing power and memory capacity. HDI PCB also enhances the thermal management and battery life of the laptop3.
4.Digital cameras: HDI PCB enables the use of high-resolution sensors, image processors, and optical zoom lenses, which improve the image quality and performance of the camera. HDI PCB also supports the features of video recording, wireless transmission, and image stabilization3.
5.Military applications: HDI PCB is used in various military applications, such as avionics, smart munitions, radar systems, and communication devices. HDI PCB provides high reliability, durability, and security in harsh environments and critical situations3.
HDI PCB stands for high-density interconnect printed circuit board, which is a type of PCB that uses advanced technologies and methods to achieve higher circuit density, smaller size, and better performance than traditional PCBs. Some of the advantages of HDI PCB over traditional PCB are123:
1.Miniaturization: HDI PCBs can be smaller than traditional PCBs due to their high routing density. This allows for more components and functionality in a compact space, which is ideal for portable and wearable devices.
2.Improved electrical performance: HDI PCBs reduce parasitic capacitance and inductance, which improves signal integrity and reduces signal noise. HDI PCBs also have lower power consumption and better thermal management, which enhances the reliability and durability of the device.
3.More functionality: HDI PCBs can accommodate more components and connections, which enables more complex and versatile circuitry. HDI PCBs can also support high-speed, high-frequency, and low-power applications, which are essential for modern electronics.
HDI PCBs are manufactured by sequential lamination, which is a process of stacking and bonding multiple layers of PCBs together using thin cores and microvias. Microvias are very small vias that are laser-drilled, which allows for more precision and flexibility than mechanical drilling. HDI PCBs can have up to 20 layers or more, while traditional PCBs usually have up to 16 layers2.
Choosing between traditional and HDI PCB depends on your design requirements, budget, and application. Here are some factors to consider when making your decision123:
1.Size and density: HDI PCBs are smaller and denser than traditional PCBs, as they use microvias, blind and buried vias, and fine traces and pads to accommodate more components and connections in a limited space. If you need to design a compact and lightweight device with high functionality and reliability, HDI PCBs may be a better option.
2.Performance and quality: HDI PCBs have better electrical performance and quality than traditional PCBs, as they reduce parasitic capacitance and inductance, improve signal integrity and reduce noise, lower power consumption and heat dissipation, and enhance thermal management and durability. If you need to design a device that requires high-speed, high-frequency, and low-power applications, HDI PCBs may be a better option.
3.Cost and complexity: HDI PCBs are more costly and complex than traditional PCBs, as they require advanced manufacturing technologies and methods, such as laser drilling, sequential lamination, and fine pitch soldering. HDI PCBs also have more stringent design for manufacturing (DFM) requirements and quality control standards. If you have a limited budget and a simple design, traditional PCBs may be a better option.
Ultimately, the choice between traditional and HDI PCB depends on your specific needs and preferences.
Designing an HDI PCB requires careful planning and attention to detail, as well as following some basic guidelines and best practices. Here are some steps to help you design an HDI PCB123:
Step 1: Check your manufacturer’s capabilities and limitations. You should always consult with your PCB manufacturer before starting your design, as they may have different specifications and requirements for HDI PCBs. For example, they may have limits on the minimum trace width and space, the minimum via size and pitch, the maximum number of layers and vias, and the materials and processes they can use. You should also ask for their DFM (design for manufacturing) rules and guidelines, which will help you avoid errors and delays in the fabrication process.
Step 2: Plan your stack-up and via structure. One of the key aspects of HDI PCB design is the stack-up and via structure, which determine the interconnection density and routing flexibility of your board. You should choose the appropriate number and type of layers, cores, and prepregs for your design, as well as the type and arrangement of vias, such as microvias, blind vias, buried vias, stacked vias, staggered vias, and skip vias. You should also consider the impedance, signal integrity, and thermal management of your board when planning your stack-up and via structure.
Step 3: Choose the right materials. HDI PCBs typically use different materials than conventional PCBs, as they need to withstand higher temperatures, pressures, and stresses during the fabrication and operation processes. You should select the materials that match your design specifications and performance requirements, such as the dielectric constant, loss tangent, thermal expansion, glass transition temperature, and moisture absorption. You should also consider the compatibility and reliability of the materials with the components and soldering methods you will use.
Step 4: Place and fanout your components. HDI PCBs often use fine-pitch and high-pin-count components, such as BGAs, CSPs, and QFNs, which require careful placement and fanout strategies. You should place your components as close as possible to each other and to the edge of the board, while avoiding interference and overlap. You should also use the optimal fanout pattern for your components, such as dog-bone, via-in-pad, or microvia-in-pad, which will affect the routing efficiency and signal quality of your board.
Step 5: Route your traces and optimize your design. HDI PCBs have higher routing density and complexity than conventional PCBs, which require more skill and precision. You should use the smallest trace width and space that your manufacturer can handle, while maintaining the required impedance and clearance. You should also use the shortest and simplest trace routes possible, while avoiding crosstalk, noise, and reflections. You should also optimize your design by using techniques such as length matching, differential pairs, shielding, and termination.
These are some of the basic steps and guidelines for designing an HDI PCB. However, there may be more specific and advanced considerations depending on your design goals and challenges. You can use a professional PCB design software, such as Altium Designer4, to help you create and verify your HDI PCB design. Altium Designer has powerful features and tools that are built for HDI PCB design, such as layer stack manager, via manager, impedance calculator, signal integrity analyzer, and DRC checker.
HDI PCB is a type of PCB that uses micro-blind holes, buried holes, fine traces, and pads to achieve higher circuit density, smaller size, and better performance than conventional PCBs. HDI PCB is widely used in complex and compact electronic devices that require high-speed, high-frequency, and low-power consumption. HDI PCB is manufactured by sequential lamination, which is a process of stacking and bonding multiple layers of PCBs together. HDI PCB is a key technology for the development of modern electronics.
