Circuit Card Assembly(CCA) is a vital manufacturing process for producing printed circuit boards, playing a crucial role in various industries, including the military and aerospace sectors. This technique transforms raw materials into intricate PCBs, requiring skilled professionals for design layout and assembly. Here are key insights into the CCA process that you should be aware of, especially if you're considering purchasing a batch of circuit card assemblies.

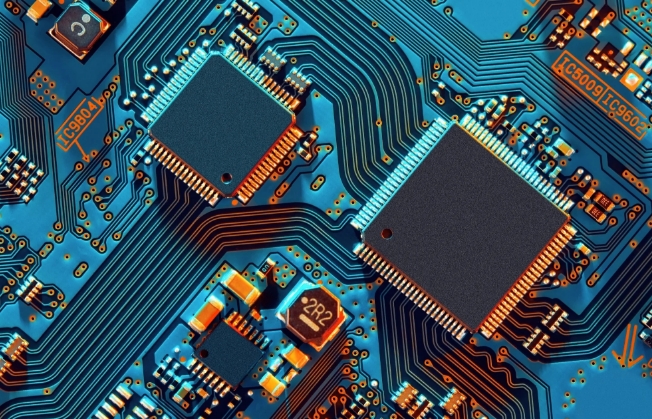

A circuit card is a thin, flat piece of dielectric material featuring conductive paths or traces that connect electronic components. CCA involves etching patterns onto a dielectric substrate, such as FR-4, and adding electronic components to it. The initial step is creating a circuit card design using computer-aided design (CAD) software. The design is then sent to a computer-aided manufacturing (CAM) system, which generates tooling paths and manufacturing instructions. The substrate is etched with desired patterns using a photochemical process, and electronic components are soldered onto it. After inspection, the circuit card is cleaned and ready for use.

CCA offers several advantages over other manufacturing methods. It allows for more complex designs without the need for drilled holes, enabling intricate patterns. The process is also faster and more cost-effective, as all steps are performed in a single machine, eliminating the need for transfers between machines.

However, CCA has its drawbacks. Repairing a CCA-manufactured circuit card assembly can be challenging due to the complex circuitry. Replicating a design may also pose difficulties if the original design is lost. Additionally, CCA is less suitable for mass production due to its intricate nature.

In conclusion, while CCA presents an excellent method for manufacturing circuit cards, understanding its advantages and limitations is crucial. For those entering the field or considering a new supplier for their circuit card assemblies, a careful investigation of different manufacturers' specialties is essential.

Rigao, a seasoned circuit card assembly manufacturer, prioritizes sourcing original components and delivering high-quality circuit card assemblies for SMEs. Contact us for an instant quote for your circuit card assembly needs.
